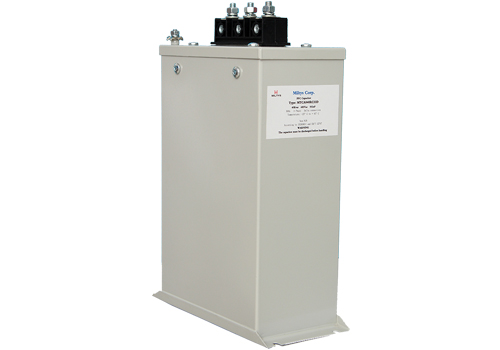

Power Factor Correction Capacitor
shape Dry construction, Round and Rectangle
Electrical Characteristics
Rated Voltages ：400/ 440/ 480/ 525/ 800 VAC and other customs certificated
Rated Frequency：50 Hz
Capacitor Type ：Dry construction
Dielectric: System Self-Healing Metallized Polyproyplene Film
Capacitor Connection: Delta Connection and Wye Connection
Capacitance Tolerance: -5% or +10% or other customs certificated
Discharge Device: Internal resistors reduce residual voltage to < 50 Volts within 3 minute
Over Current
Standard ：100% x rated current continuous, includes harmonic currents
High Harmonic： 130% x rated current continuous, includes harmonic currents
Total Losses ： < 0.5 Watts / kVAR at 50 Hz, 25°C (without resistors)
Design Service Life ： 100,000 Operating Hours
Standards
According to IEC60871 and GB/T 12747
Type：MTCA
Voltage：250V/400V/440V/480V/525V/800V
Shape：Round or Rectangle
